Industrial Shafts
High precision engineered shafts for heavy-duty industrial applications, tooling infrastructure, and high-wear components.

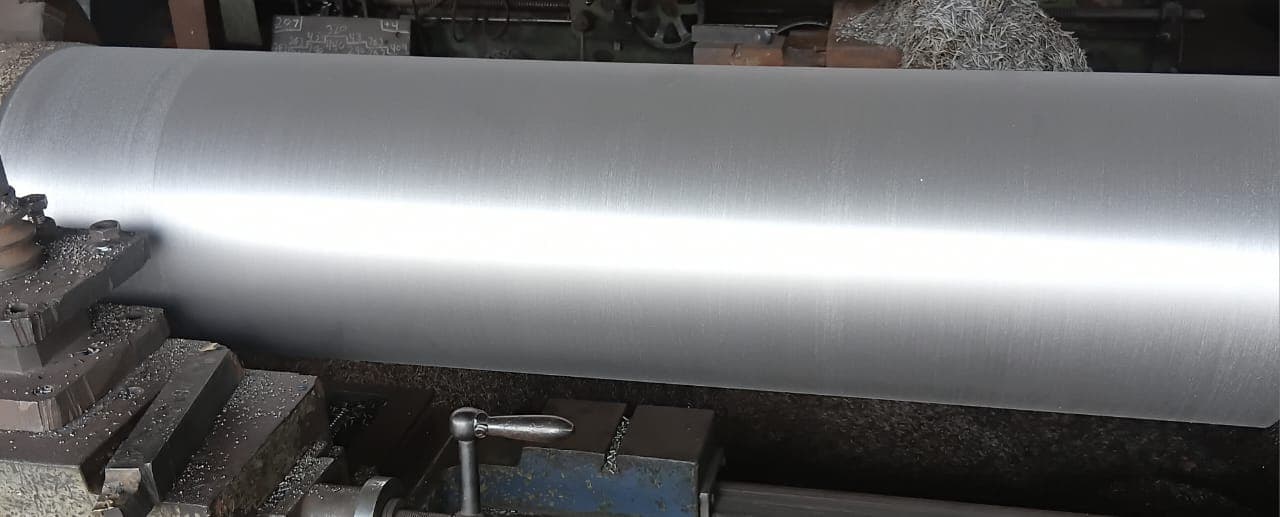

D3 Shafts
High carbon high chromium tool steel shafts with excellent wear resistance and dimensional stability, ideal for heavy-duty industrial use.
High Wear Resistance
High Strength
Long Life
Precision
| Diameter | Hardness | Application |
|---|---|---|
| 50–200 mm | 58–62 HRC | Cutting / Tooling |
| 200–500 mm | 55–60 HRC | Heavy Duty |
Chemical Composition Range
| C% | Mn% | Si% | P% | S% | Cr% |
|---|---|---|---|---|---|
| Min2.00 | Min0.20 | Min0.20 | Min- | Min- | Min11.00 |
| Max2.35 | Max0.60 | Max0.60 | Max0.03(MAX) | Max0.03(MAX) | Max13.00 |
D2 Shafts
Medium carbon steel shafts suitable for general engineering applications with good strength and machinability.
Good Strength
Machinable
Cost Effective
Reliable
| Diameter | Hardness | Application |
|---|---|---|
| 50–300 mm | 200–250 HB | General Engineering |
Chemical Composition Range
| C% | Mn% | Si% | P% | S% | Cr% |
|---|---|---|---|---|---|
| Min0.36 | Min0.60 | Min0.10 | Min- | Min- | Min- |
| Max0.44 | Max1.00 | Max0.35 | Max0.05(MAX) | Max0.05(MAX) | Max- |
